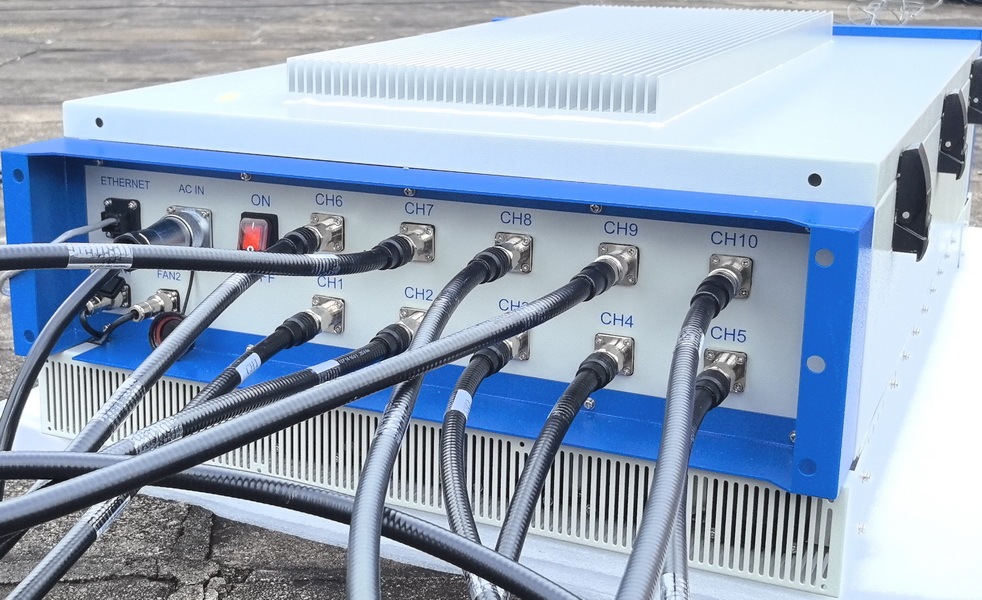

High Power 10 Bands Anti Drone Jamming System: Comprehensive Protection Against Commercial Drones
The High Power 10 Bands Anti Drone Jamming System emerges as a cutting-edge solution for critical infrastructure protection, military operations, and public safety. This system represents the pinnacle of counter-drone technology, combining multi-spectrum jamming capabilities with intelligent signal analysis to neutralize UAV threats up to 2km operational radius.
Features
Frequency bands and output power selectable
Each frequency band be controlled independently by different power adjusting snobs
Easy operation and installation
Remote Monitoring software available to control the Jammer (optional)
Applications
Any sensitive locations where the UAV / quadcopter / drones are not allowed, such as prisons, military bases.
Technical Specifications
Jamming frequency bands: 10 frequency bands selectable of the frequency bands used by commerical quadcopter drones.
RF output power: up to 1000W
Internal Modulation: FM Hopping Frequency and Sweeping
Signal Source: PLL Synthesized & VCO / DDS
Effective jamming range: up to 1000 meters depending on the environment signal strength;
Jamming target: 315/433/868/915MHz, GPS L1/L2, BDS, GNSS, 1.2G, 1.4G, 2.4G, 2.8G, 5.2G, 5.8G selectable
Remote Control: Remote Monitoring available by IP Network (optional)
Remote Control Interface: RJ45 (optional)
Power supply: 110-220VAC/27-48VDC
Continuous working hours: Long time

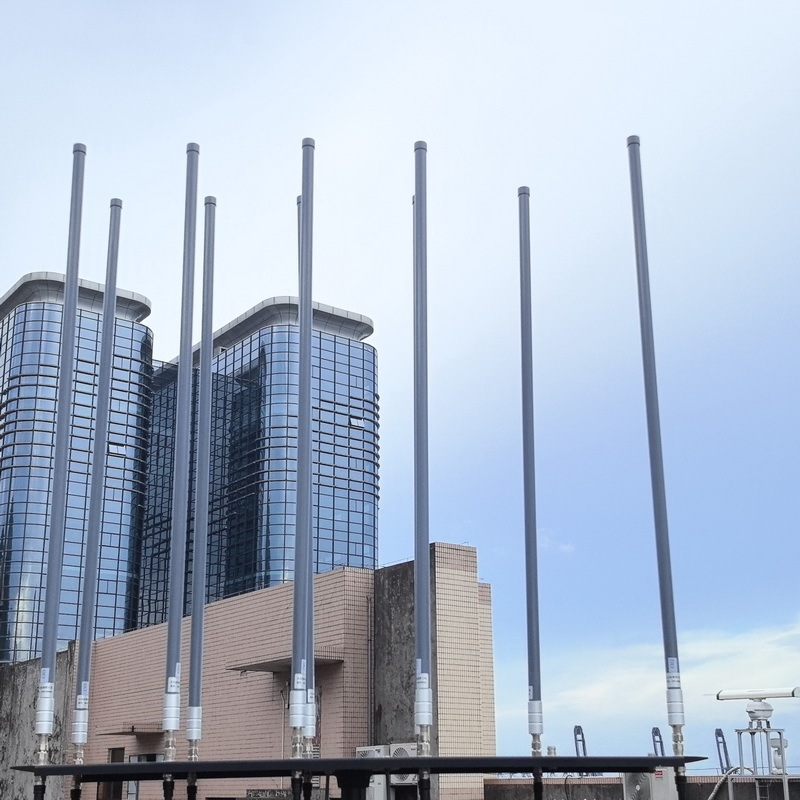

Antennas type: 10pcs High Gain Omni Antennas
Device Dimension: 500*410*300mm
Device Net Weight: approx 55kgs
Operating Temperature: -20ºC - +55ºC
Humidity: up to 95%
